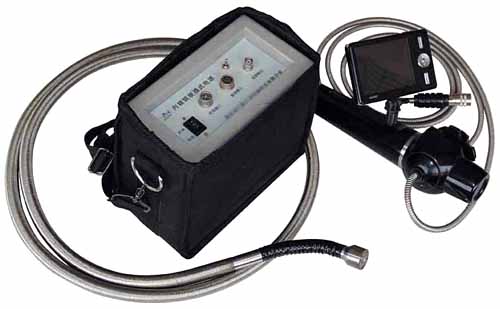

LH-F fluorescence electric endoscope

1. Features
LH-F fluorescence electronic endoscope is new type inspection equipment with the techniques of ultraviolet irradiation, optics imaging, precision machinery, electronics and micro-camera technology. It utilizes the characteristic that magnetic fluorescence material can light under ultraviolet irradiation. The fluorescent material will be applied to the surface of iron magnetic parts, and then can do inspection in virtue of the fluorescence. It is especially suitable for the inspection of object with shape of board, axle and rod, and furcation, such as welding line, shaft, motorcycle, part, valve, piston, bolt, turning burl, etc. It has two sets of lighting system: white light and UV lighting. The two lighting system can light at the same time, and also can switch each other, to achieve the combining of macro and subtle inspection. It will show the cracks of different direction at the same time and accurately, without miss and need to consider the direction of magnetization. This type endoscope has the characteristics of agility, reclusion high, image clarity, color fidelity and shape accurate. The LCD screen with memory can kinescope the process of inspection. If connect with computer through the USB interface, the image can be captured, freeze, storage, the length or area of the defects can be measured and calculated, and the results will generate reports.

2. Main purposes and the scopes of application
LH-F fluorescence electric endoscope is especially suitable for the inspection of object with shape of board, axle and rod, and furcation. The surface and near-surface bugs of some medium and small accessory can be checked using it, such as welding line, shaft, motorcycle, part, valve, piston, bolt, turning burl, etc. It has been widely used in the fields of motorcycle, heavy foundry, pressing matrix, natural gas drill pipe, boiler pressure vessel, and so on.

3. Technical parameters
1. Field angle: 95 °
2. Bending angle: up and down, left and right are ≥ 90 °
3. CCD chip: SONY1 / 6", Color, 2lux,
4. Pixels: 47 ten thousand
5. The probe diameter : Φ24mm
6. Insertion tube diameter: Φ16mm
7. Insertion tube length: 0.5~10m
8. The best observation distance: 10 ~ 60mm
9. Lighting: ultraviolet cool light source (brightness can be adjusted at will)
10. Ultraviolet light wave: 360~406nm
11. Display: 8" LCD screen
12. Voltage used: AC 220V±22 V 50 Hz±1 Hz
13. Consecutive working hours: 48 hours
14. Working environment: -20 C° ~ 50 C°

4. The standard configuration
① Endoscope host，one ② 8" LCD monitor, one ③Ultraviolet power supply, one ④ Aluminum alloy equipment box, one
