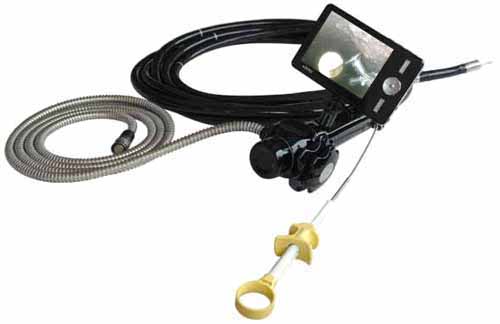

LH-D snatch electronic endoscope

1. Features
LH-D snatch electronic endoscope is new type equipment with the techniques of optics, precision machinery, electronics and micro-camera technology, and devotes to the salvage of foreign bodies within cavities. Its most notable feature is the function of crawling foreign bodies. It can easily find foreign bodies in the in deep and narrow space; take out them by the manipulator extend in the probe fore-end. For an ordinary endoscope, can only to find out problems. LH-D snatch electronic endoscope is also able to solve the problems. It can clearly show the image of the inspected part, the process of searching and crawling foreign body can be kinescoped. The machine can be connected with computer through the USB interface. The video can be captured, freeze, storage, the length or area of the defects can be measured and calculated, and the results will generate reports. The information can be easily archived or accessed.

2. Main purposes and the scopes of application
LH-D snatch electronic endoscope mainly is used for the search and salvage of internal foreign body within cavities. LH-D snatch electronic endoscope has now been widely used in variety fields, such as electric power, oil, chemical industry, aviation, aerospace, Shipping, plumbing, boiler pressure vessel, oil pump, fuel pumps，flow nipple，military weapons, search and rescue，etc.

3. Technical parameters
1. Observation direction: direct viewing
2. Field angle: 95 °
3. Bending angle: up and down, left and right are ≥ 120 °
4. CCD chip: SONY1 / 6", Color, 2lux, 47 ten thousand pixels
5. Insertion tube outer diameter: Φ13.5 mm
6. Insertion tube length: 1 ~ 5m
7. The best work from: 10 ~ 200mm
8. Manipulator distance: 1.2m ~ 5.2m
9. Manipulator types: ① alligator mouth and rat tooth ② goose mouth ③ five-claw ④ rubber head ⑤ Angular basket of⑥e dual-port scissors
10. Lighting: high-brightness LED (brightness can be adjusted at will)
11. Display: 4" TFT LCD screen (comes with 1 G memory)
12. Horizontal resolution: 580 lines
13. The working environment: -20 C° ~ 50 C°
14. Voltage used: DC12V lithium batteries，12 AH， Number of charge cycles：5,000
15. Consecutive working hours: 48 hours

4.The standard configuration
① Endoscope host，one ② Portable power, one ③ 4" TFT LCD, one set ④ Manipulator, one (optional) ⑤ Aluminum alloy equipment box, one
