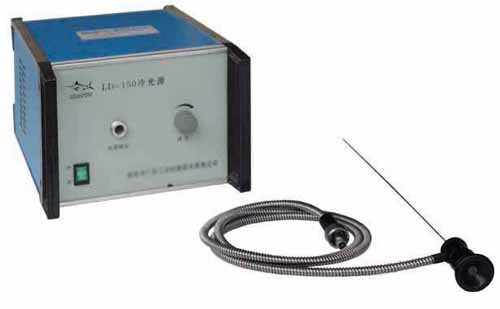

1.KYQ-A super-fine fiber hard-pipe endoscope

1. Features
KYQ-A super-fine fiber hard-pipe endoscope realizes the image transmission by the principle that optical fiber can pass image and light. The light issued by the cold light-source will be transferred to the inspected objects through light-beam, and then the image of the objects will be gathered on the image-fiber surface. Then the image will be transferred by image-beam and we can observe the image through eyepiece. As it is not limited by the size of CCD, in addition the light-beam and the image-beam can be made very thin, so the outside diameter of the endoscope can be done very fine. This type endoscope is specially designed to inspect the narrow and reedy site. Its appearance is cabinet and delicate, observation effect is very ideal.

2. Main purposes and the scopes of application
KYQ-A super-fine fiber hard-pipe endoscope is mainly used for the inspection of narrow and reedy site, such that staggered, small and deep holes, surface of blind hole, wall of slight pipe, etc. For example, in oil pump and flow nipple industry, the inspection of burr in the internal cross-hole, and the error of its position; the inspection about finish of the pressure room, and of the burr in the nipple’s brim; the inspection for the oil pipe’s port of airplane; etc. This type endoscope has now been widely used in variety fields, such as oil pump and flow nipple industry, aviation, aerospace, nice equipment, Criminal investigation, archeology, customs，etc.

3. Technical parameters
1. Field angle: 60 °
2. Plane angle: 0°
3. Pixels: 3 ten thousand
4. Insertion part diameter: Φ2mm
5. Insertion part length: 365mm
6. Lighting: cool light source
7. Cool light source: 24V 150W

4. The standard configuration
① Endoscope host，one ② Cool light source, one ③ Aluminum alloy equipment box, one

2.Industry optical fiber endoscope

The industry optical fiber endoscopeis one kind the new optical instrument which using the fiberoptics, the precision machinery and the electronic technology union becomes. It uses the optical fiber the biography light, the transmission principle and its the soft curving performance, may the naked eye not easy visual observation any hiding spot conveniently carry on the direct fast inspection to the equipment in. Also does not need the equipment disintegration, also does not need other illumination, so long as has Kong Nengshi to peep an insertion, internal situation then may be clear at a glance. May look straight ahead, also may the sidelong glance. Also may manually controlled peep to inspect the surface to carry on continuously about scans. 100□b may visual, also may photograph, but also may the video recording or the television demonstration. Is domain and so on in machine manufacture, shipbuilding, aviation, astronautics, electricity generation, petrification, automobile, weapon, transportation, railroad, metallurgy, pressure vessel the handy direct-viewing highly effective instrumentation.
