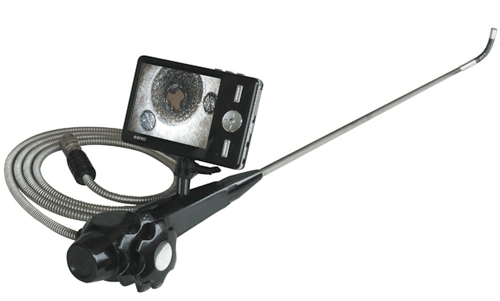

LH-A2 cylinder special electric endoscope

1. Features
LH-A2 electric cylinder endoscope is new type inspection equipment with the techniques of optics, precision machinery, electronics and micro-camera technology, and devotes to nondestructive inspection and cavity internal inspection. It is especially suitable for the inspection of the inside welding line or bottom rust of variety industry cylinder and container. The insertion part is a straight pole with a elbow, and especially fit to the objects with a small gob and a big paunch. This type electronic endoscope has the characteristics of short, handy, agility, reclusion high, image clarity, color fidelity and shape accurate, like at the scene when inspection. Peoples can observe and analyze the image at the same time, thus can avoid omissions or mistakes owing to the lack of knowledge and experience. When LH-A2 electric cylinder endoscope is combined with computer image processing system, the image can be captured, freeze, storage, the length or area of the defects can be measured and calculated, and the results will generate reports. The information can be easily archived or accessed.

2. Main purposes and the scopes of application
LH-A2 electric cylinder endoscope is the especial equipment for the inspection of variety cylinder and container. It can make accurate and micromesh check for the inside welding line, rust and crack. Now it has been widely used in factories producing cylinder, boilers, testing organizations for special equipment, testing stations for special gas, such as Liquefied gas, natural gas, hydrogen, nitrogen.

3. Technical parameters
1. Observation direction: direct viewing
2. Field angle: 95 °
3. Bending angle: up and down, left and right are ≥ 120 °
4. CCD chip: SONY1 / 6", Color, 2lux,
5. Pixels: 47 ten thousand
6. Lighting: high-brightness LED (brightness can be adjusted at will)
7. Insertion part outside diameter: Φ5~13mm
8. Insertion part length: 1~1.7m
9. The best working distance: 5~300mm
10. Horizontal resolution: 580 lines
11. Display: 8" color LCD monitor
12. Voltage used: AC220V±22V，50Hz±1Hz
13. Working environment: -20 C° ~ 50 C°

4. The standard configuration
① Endoscope host，one ② Controller, one ③ 8" LCD monitor, one ④ Aluminum alloy equipment box, one
