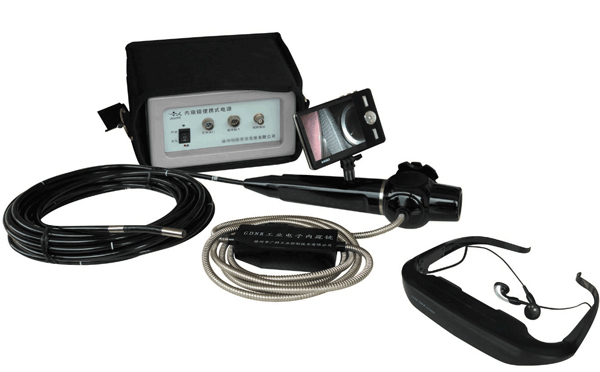

LH-C portable electric endoscope

1. Features
LH-C portable electronic endoscope is new type equipment with the techniques of optics, precision machinery, electronics and micro-camera technology, and devotes to the internal welding inspection, NDT, search and rescue. Its most notable feature is the portability. It is particularly suitable for situation in the absence of AC and climbing platform. Its probe can reach toxic, hazardous and pokey space where conventional testing can not. Compared to common endoscope, the design of high integration, portability, high-energy lithium battery power greatly enhances the mobile portable performance. It can clearly show the image of the inspected part, the process of searching and crawling foreign body can be kinescoped. The machine can be connected with computer through the USB interface. The video can be captured, freeze, storage, the length or area of the defects can be measured and calculated, and the results will generate reports. The information can be easily archived or accessed.

2. Main purposes and the scopes of application
LH-C portable electronic endoscope mainly is used for situation in the absence of AC and climbing platform. It can expediently make inspection in a complex internal cavity for welding quality, corrosion and cracks in the inner surface, the pipeline’s block, part’s wear, equipment installation space, etc. LH-C ordinary electronic endoscope has now been widely used in variety fields, such as electric power, oil, chemical industry, aviation, aerospace, Shipping, plumbing, boiler pressure vessel, oil pump, fuel pumps，flow nipple，military weapons, archaeology, search and rescue，etc.

3. Technical parameters
1. Observation direction: direct viewing
2. Field angle: 95 °
3. Bending angle: up and down, left and right are ≥ 120 °
4. CCD chip: SONY1 / 6", Color, 2lux, 47 ten thousand pixels
5. Insertion tube outer diameter: Φ6.5 ~ 16mm
6. Insertion tube length: 0.5~15m
7. The best work from: 10~200 mm
8. Lighting: high-brightness LED (brightness can be adjusted at will)
9. Display: 4" TFT LCD screen
10. The working environment: -20 C° ~ 50 C°
11. Voltage used: DC12V lithium batteries，12 AH， Number of charge cycles：5,000
12. Consecutive working hours: 48 hours

4. The standard configuration
① Endoscope host，one ② Portable power supply, one ③ 4" TFT screen monitor, one ④ Aluminum alloy equipment box, one
