LH-B ordinary electronic endoscope

1. Features
LH-B ordinary electronic endoscope is new type equipment with the techniques of optics, precision machinery, electronics and micro-camera technology, and devotes to the internal welding inspection, NDT, search and rescue. Its probe can reach toxic, hazardous and pokey space where conventional testing can not. Compared to the traditional fiber endoscope, the image quality has great advance. The high-brightness LED lighting avoids the brightness decay after long-distance transmission, so the electronic endoscope can be much longer than the fiber endoscope. High integration CCD substitutes the fragile-beam, thus not only eliminates the onscreen netted veins, but also enhances the life of the equipment. The use of LCD monitors can live up to at the same time observation of people, thus can reduce the labor intensity and also increase the accuracy of judgment. The image gathered by LH-B ordinary electronic endoscope can combine with endoscope image processing system. After that, the image can be captured, freeze, storage, the length or area of the defects can be measured and calculated, and the results will generate reports. The information can be easily archived or accessed.

2. Main purposes and the scopes of application
LH-B ordinary electronic endoscope mainly is used for toxic, hazardous and pokey space where conventional testing can not reach. It can expediently make inspection in a complex internal cavity for welding quality, corrosion and cracks in the inner surface, the pipeline’s block, part’s wear, equipment installation space, etc. LH-B ordinary electronic endoscope has now been widely used in variety fields, such as electric power, oil, chemical industry, aviation, aerospace, Shipping, plumbing, boiler pressure vessel, oil pump, fuel pumps，flow nipple，military weapons, archaeology, search and rescue，etc.

3. Technical parameters
1. Observation direction: direct viewing
2. Field angle: 95 °
3. Bending angle: up and down, left and right are ≥ 120 °
4. CCD chip: SONY1 / 6", Color, 2lux, 47 ten thousand pixels
5. Insertion tube outer diameter: Φ6.5 ~ 6mm
6. Insertion tube length: 0.5 ~ 20m
7. The best work from: 5 ~ 300mm
8. Lighting: high-brightness LED (brightness can be adjusted at will)
9. Display: 8" TFT LCD screen
10. The working environment: -20 C° ~ 50 C°
11. Voltage used: AC22V±22V 50Hz±1Hz

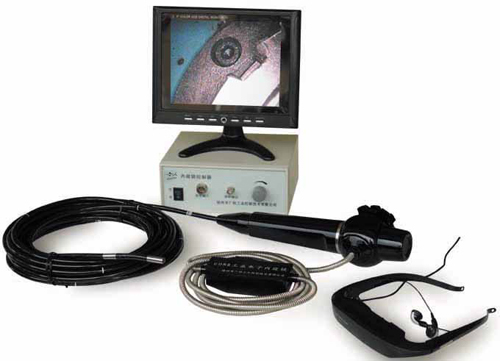

4. The standard configuration
① Endoscope host，one ② Controller, one ③ 8" LCD screen monitor, one ④ Aluminum alloy equipment box, one
