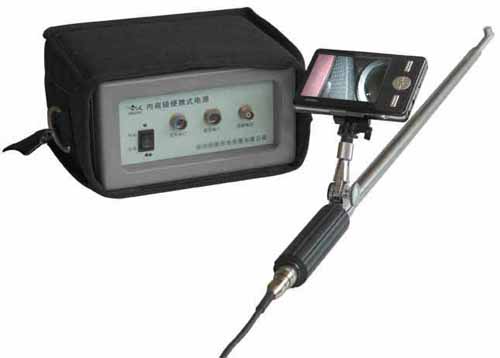

LH-E telescopic electronic endoscope

1. Features
LH-E telescopic electronic endoscope is new type equipment with the techniques of optics, precision machinery, electronics and micro-camera technology, and devotes to nondestructive inspection and cavity internal inspection. It is designed especially for the occasion that outside space is limited, the inspected part is in narrow gap and request a certain span. The insert pole is hard and can stretch out and draw back, thus can avoid the deficiency of tube and the inconvenience of too long. This type endoscope has the characteristics of short, handy, agility, reclusion high, image clarity, color fidelity and shape accurate. The LCD screen with memory can kinescope the process of inspection. If connect with computer through the USB interface, the image can be captured, freeze, storage, the length or area of the defects can be measured and calculated, and the results will generate reports.

2. Main purposes and the scopes of application
LH-E telescopic electronic endoscope is mainly used for situation that outside space is limited, the inspected part is in narrow gap and request a certain span. The relative domain includes special transformer, motorcycle, watercraft, large machine, boiler pressure vessel, search and rescue, criminal investigation, the officers, etc.

3. Technical parameters
1. Field angle: 95 °
2. Observation direction: side looking
3. CCD chip: SONY1 / 6", Color, 2lux,
4. Pixels: 47 ten thousand
5. The diameter for insertion tube: 12mm×15mm
6. Insertion pole length (open out): 1m
7. The best observation distance: 10 ~ 60mm
8. Lighting: high-brightness LED (brightness can be adjusted at will)
9. Display: 4" LCD screen (comes with 1 G memory)
10. Voltage used: DC 12 lithium batteries,12AH. Number of charge cycles:5000
11. Consecutive working hours:48 hours

4. The standard configuration
① Endoscope host，one ② Controller, one ③ 4 " LCD screen, one ④ Aluminum alloy equipment box, one
