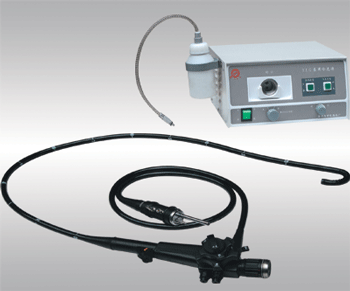

KXS
type upper digestive tract fiberscope
Based
on the advanced technology from abroad
and designed solely by our company, KXS
type upper digestive tract fiberscope is
a product successfully developed through
the implementation of the “torch
project” during the 8th
five year plan made the national
committee of science. It features wide
field of view, high resolution, easy
insertion and operation and is suitable
for the observation, diagnosis and
treatment of disease focuses in the
esophagus, stomach and duodenum. In
addition, it is a desirable device for
the pathological research on the upper
digestive tract and post operation
examination. It was awarded the
certificate of high and new technology
product and the national keynote product
certificate in 1999, national new
product certificate in 2000, and
provincial excellent and new product in
2001.
Characteristics:
* Excellent optical system: long depth of field, wide angle
of view, high resolution, bright and
sharp display
* Advanced operation system: comfortable handling,
convenient operation, accurate and
wearable
* Patient friendly insertion system: segmentally hardened
and flexible with fine performance of
insertion
* Complete auxiliary system: biopsy channel, water supply,
air supply, sucking part and fine light
source
Technical
parameters:
|
Angle
of view
|
≥95º(forward
sight)
|
|
Depth
of field
|
3∽100mm
|
|
External
diameter at head end
|
Φ
9.8mm
|
|
External
diameter of the
insert
tube
|
Φ
9.8mm
|
|
Bend
angle
|
Upward≥180º，downward,
left and right≥100º
|
|
Inside
diameter of the pincers hole
|
≥Φ
2.8mm
|
|
Effective
working length
|
1010mm
|
|
Full
length
|
≥
1350mm
(main
hose pipe+ control handle )
|
|
Maximum
bend angle of the main hose pipe
|
≥210º
|

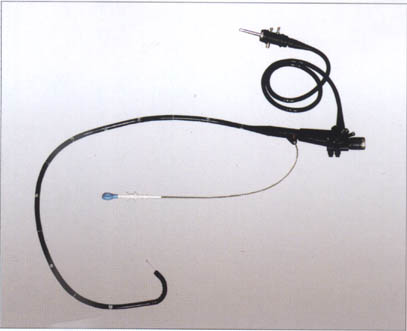

KXJ type fibercoloscope
Characteristics:
* Excellent optical system: long depth of field, wide angle
of view, high resolution, bright and
sharp display
* Advanced operation system: comfortable handling,
convenient operation, accurate and
wearable
* Patient friendly insertion system: segmentally hardened
and flexible with fine performance of
insertion
* Complete auxiliary system: biopsy channel, water supply,
air supply, sucking part and fine light
source
Technical
parameters:
|
Angle
of view
|
≥120º(forward
sight)
|
|
Depth
of field
|
3∽100mm
|
|
External
diameter at head end
|
Φ13.4mm
|
|
External
diameter of the
insert
tube
|
Φ12.9mm
|
|
Bend
angle
|
Upward
and downward≥180º，
left and right≥160º
|
|
Inside
diameter of the pincers hole
|
≥Φ3.2mm
|
|
Effective
working length
|
1010mm
or 1310mm
|
|
Full
length
|
≥1650mm(main
hose pipe+ control handle )
|
|
Maximum
bend angle of the main hose pipe
|
≥210º
|

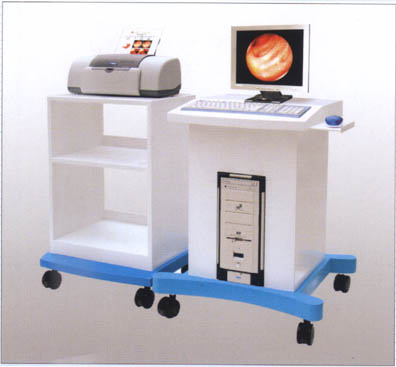

Endoscope image workstation
Characteristics:
*Dynamic display in real time, digital image acquisition,
dynamic film playback, 24 bits real
color, foot switch, mouse, acquisition
through keyboard, dynamic image database
*
Visualization of the real time image
processing: false color, zoom, rotation,
mirror image, image division
*
Label of accurate results of
measurement: perimeter, area, histogram
*
Database of abundant diagnosis
information providing powerful expert
assistant diagnosis system, thesaurus
and pictures
*
Powerful case management system: query,
statistic, deletion and copy
*。Professional
full screen display function making
diagnosis more clear, accurate and
direct, convenient for consultation and
teaching
*
Supporting network and establishment of
PACS system
|
On

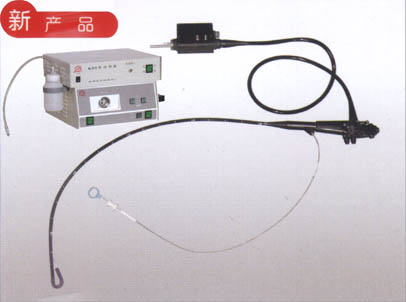

KDS in digestive tract electron mirror (gastroscope)
|
Performance
characteristic:
*
Outstanding optical system:
Superelevation resolution,
440,000 high picture elements
high sensitivities luminosity,
CCD colored charge-coupled
device, long depth of field,
broad angle of view, bright
clear first-class picture.
*
Advanced operating system:
Feel gentle, the ease of
operation nimble, is accurate,
is not weary.
*
Human nature insertion system:
The partition hardens, is
curving freely, the good
insertion performance.
*
Consummation servosystem:
活检 the channel, supplies
water, delivers the gas, the
attraction, the good
photosource illumination.
Technical
parameter:
| Angle
of view |
>=
110º
|
|
Observation
depth of field
|
3∽
100mm
|
| Nose
outer diameter |
Phi
10.2mm |
| Insert
tube outer diameter |
Phi
9.8mm |
| Curving
angle |
On>=
180º, gets
down, left, is right
each >= 120º |
| Pliers
hole inside diameter |
Phi
2.8mm |
| Effective
work length |
1010mm |
| Span |
>=
1350mm (host hose +
control handle) |
|
Main
hose most greatly
curving angle
|
>=
210º
|
|
|
|

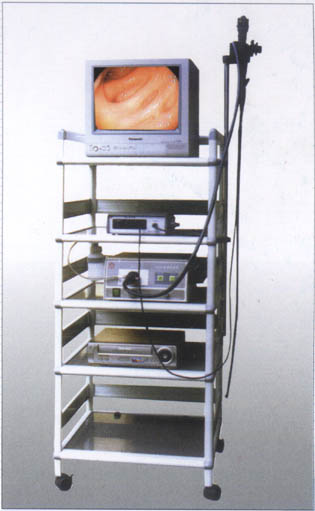

Endoscope
display system
|
Performance
characteristic:
*
High distinguishing rate CCD
colored camera, high
definition color monitor.
*
The picture clear perfect,
real is reliable.
*
Eyelens, surveillance
synchronization observation.
*
Disposition specialized
videorecorder.
|
|
|
Pipeline
crawlingendoscope
|

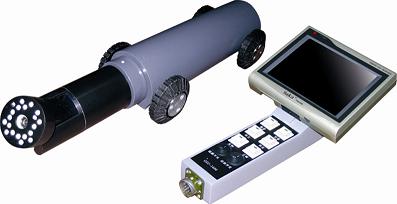

The
pipeline crawling
endoscopeis
one kind of collection
modern optics,
precision machinery,
electronic technology,
computer technology to
a body
photoelectricity
instrument. This
instrument pick-up
head
may revolve 360
in
the pipeline°,
turns over180°,can
carry on the
inspection to each
kind of pipeline
internal surface,
specially can because
wash out to the
long-term use the
fluid, function and so
on electrochemistry
corrosion appears the
mechanical crack and
the corrosion
perforation pipeline
carries on not damages
the examination, can
avoid finally causing
the transportation
efficiency to reduce,
accident and so on
transportation medium
revelation occurrence.
Therefore carries on
the periodic
inspection using the
pipeline crawling
endoscope to each kind
of pipeline promptly
to discover in the
pipeline appears the
flaw and carries on
the service, not only
can avoid the accident
the occurrence
enhancement working
efficiency also
bringing the
significant economic
efficiency and the
social efficiency.
The pipeline crawling
endoscope controller
uses portable above is
loaded with the liquid
crystal display
monitor, also can
observe the picture
during control.
Controls on the power
source to have the
video output to be
allowed to connect the
monitoring device or
the computer enters
the picture processing
system.
□ technical
parameter
Crawling technical
specification
l
speed
maximum
speed16m/minute
l
disposes
wheeled
crawling
l
drive
type
two
turns of actuations
l
material
quality
aluminum
alloy
l
movement
is away from
50m
l
adaption
pipeline diameter
100mm -
600mm
Pick-up
head
technology parameter
l
CCD
1/4colored
camera
resolution
450 TV
l
lowest
degree of illumination
3Lux
l
electron
shutter
1,/50 -
1/.1 million
l
lens
and angle of view
F3.8
the F2.5 objective
lens may the automatic
focussing action,
Most
long-distance range10mm
-
∞
l
axial
revolves
the control to
revolve 360°, radial
direction turn over
180°
l
photosource
high brightness
LED
Control
system
l
display
system
6□ illness
bites □ the liquid
crystal monitoring
device
l
power
source
220V, 50Hz
l
video
frequency transmits
two groups
video outputs
l
actuation
transmits
three groups
transmissions
l
control
transmits
two groups
transmissions
|
|
|
|
GDY

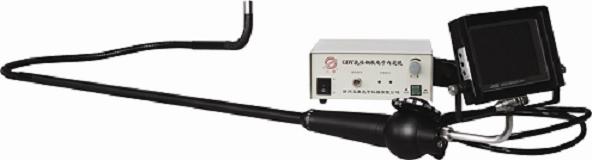

(flexibility) electronic endoscope
|
The
brand-new idea designGDY
flexibile electron
endoscope, uses
the high resolution
the CCD electron charge-coupled
device
and the specialized
design objective lens
system perfect union.
It's light, machine,
the electricity and
the integration,
mainly are suitable
for each kind of gas
steel cylinder
internal surface
direct-viewing
inspection. Pokes head
in to design for looks
straight ahead, may
make two directions to
swing, direction
swings the angle >=
170°, can be cover
all to the steel
cylinder base and the
pate. Is at present
inspects is mad the
steel cylinder most
ideal check-out
facility.
Product
characteristic
l
pokes
head in the manager to
use imports the
corrugated pipe and
the stainless steel
pipe processing
manufacture, it
overcame the
traditional soft
looking glass the
shortcoming which
oneself was unable in
a bigger vessel
accurately to locate,
the mirror body has
been possible wilfully
to distort also the
function is not
affected;
l
by
along with matches the
belt to be possible to
charge the type power
source to provide the
electrical energy,
causes the instrument
not to have to be able
to facilitate with
ease with the aid of
the field power supply
to is done by the test
item the objective
inspection;
l
3.5
inches colored liquid
crystals monitoring
devices (portable) may
directly carry on the
freeze, transcribing,
the memory to the
examination picture;
□ technical
parameter
Length:
>=1200mm
Outer
diameter:15mm
Angle
of view: >=80°
Peeps
to swing the angle:
Left >=100°;
Right >= 170°
Flexibile
length: >=500mm
Cold
photosource:
Exportation degree of
illumination: >=60,000
Lux AC 220V
50Hz/24V150W
Monitoring
device:3.5
inches (portable) or
15 inches colored
liquid crystals
screens
|
|
|
|

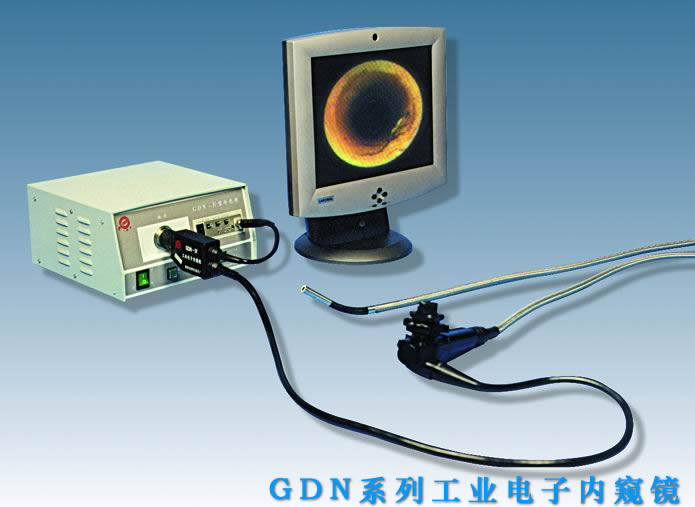

Industry
electron endoscope
|
The industry
electron endoscope,
is new not damages the
instrumentation which
using the electronic
technology, optics and
the precision
machinery manufacture
unifies.
The
GDN series industry
electron endoscope has
used the newest
digital colored CCD
imagery component,
caused the electronic
endoscope the
performance before had
a has been more
remarkable than
enhancement. Compares
with the optical fiber
industry endoscope,
except has soft may
curving and so on
outside the
performance also have
distinguishing rate
high, the picture
clear, the color
lifelike, is examined
accurately the spot
shape, the effective
estimate the range of
a targetk is long and
so on the merit. The
GDN series electron
endoscope horizontal
definition reaches
470, signal to noise
ratio 46dB, the

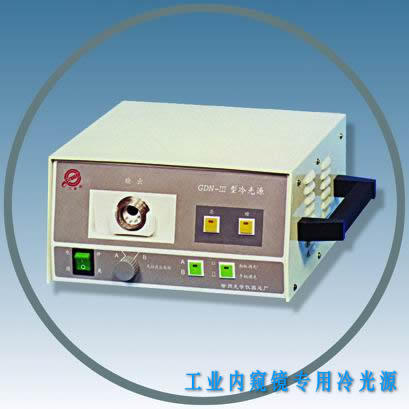

electronic endoscope
cold photosource
adopts the machinery
to adjust the light
the way, had
guaranteed when
photosource degree of
illumination change
photosource color warm
invariable, is lower
when the environment
degree of illumination
still could accurately
reappear the material
object the color. Also
may realize function
and so on picture
freeze, fractionated
gain, memory, survey.
Industry electron
endoscope widespread
application in machine
equipment, specially
equipment in and so on
boiler, heat
interchanger,
condenser tube or
complete set of
equipment pipeline
examination. May for
at the same time the
multi- people to
observe, the analysis
high definition image
through the monitoring
device, to is examined
the spot to make the
objective judgement.
□ technical
parameter
Working
length: 1.5m
~ 8m (peeps to be
possible to be
curving)
100m
(peeps not to be
possible to be
curving)
Work
outer diameter: ￠
6mm ~ ￠ 20mm
Angle
of view: 90°
~ 110°
Regards approaches: Looks
straight ahead
Best
work distance: 8mm
~ 100mm
Illumination
way: Light
guide tubular
Display
mode: Full
screen demonstration
Horizontal
resolution: >=
430
|
|
|
|
Industry

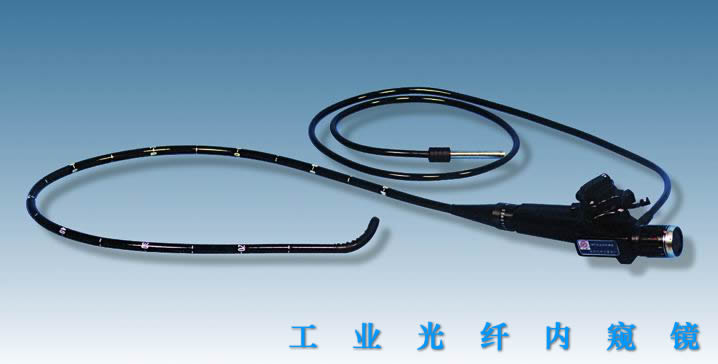

optical fiber endoscope
|
The industry optical fiber
endoscopeis one kind the
new optical instrument which
using the fiberoptics, the
precision machinery and the
electronic technology union
becomes. It uses the optical
fiber the biography light, the
transmission principle and its
the soft curving performance,
may the naked eye not easy
visual observation any hiding
spot conveniently carry on the
direct fast inspection to the
equipment in. Also does not
need the equipment
disintegration, also does not
need other illumination, so
long as has Kong Nengshi to
peep an insertion, internal
situation then may be clear at
a glance. May look straight
ahead, also may the sidelong
glance. Also may manually
controlled peep to inspect the
surface to carry on
continuously about scans.
100□b may visual, also may
photograph, but also may the
video recording or the
television demonstration. Is
domain and so on in machine
manufacture, shipbuilding,
aviation, astronautics,
electricity generation,
petrification, automobile,
weapon, transportation,
railroad, metallurgy, pressure
vessel the handy
direct-viewing highly
effective instrumentation.
|
□ industry
optical fiber
endoscope technology
parameter
|
|
|
|
|
|
|
|
Working
length (mm)
|
1,800
~ 4,500
|
1,000
~ 2,100
|
1,000
~ 2,100
|
1,000
~ 3,500
|
|
Work
outer diameter (mm)
|
￠
12.5 ￠ 15
|
￠
6.5
|
￠
8
|
￠
10
|
|
Regards
the field
angle
|
>=
51°
|
>=
60°
|
>=
60°
|
>=
100°
|
|
Best
work distance
|
10
~ 80
|
10
~ 60
|
10
~ 60
|
5
~ 80
|
|
Eyelens
magnification
|
17X
|
22X
|
22X
|
22X
|
|
Peeps
a curving scope
|
On,
under >= 100°
|
On,
under >= 90°
|
On,
under >= 90°
|
On,
under, left, is right >=
100°
|
|
|
|

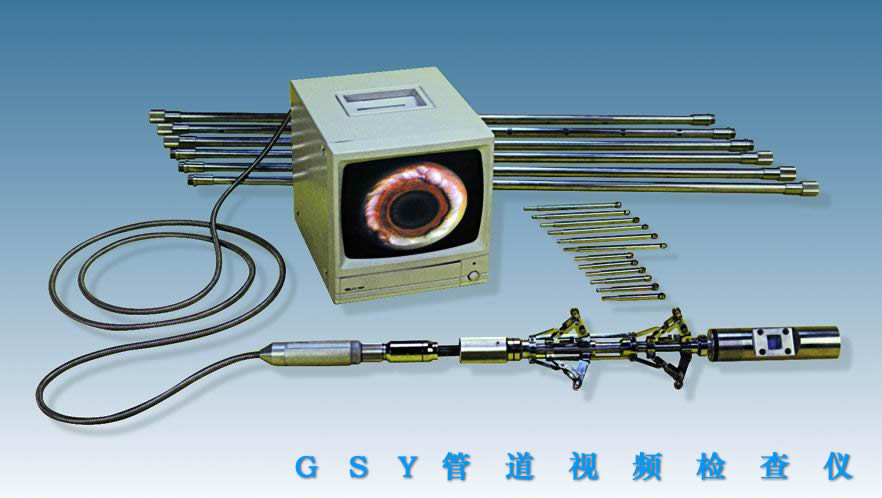

Pipeline
video frequency inspection meter
|
The pipeline video
frequency inspection meter(hard
tube industry electron
endoscope) is the our company
according to the petroleum,
the chemical industry and so
on the straight pipeline
internal surface examination
request designs, the
production new high tech
product, it's light, machine,
the electricity and the
integration, mainly are
suitable to the diameter scope
is the 50~200mm pipeline
endophragm direct-viewing
inspection, this inspection
meter provides high resolution
the color monitor, the
observation picture clear,
pokes head in to design for
looks straight ahead with the
sidelong glance two lens, may
make 360° the scanning
observation to the pipe wall,
the easy to operate, is
reliable. The central retainer
uses the double linkage, may
adjust the type. Causes to
poke head in throughout to
maintain at the pipeline
central position, its
illumination power source and
the monitoring device power
source design is a body, more
convenient and is practical.
□ technical
parameter
Survey
length: 0
~ 6M
Survey
diameter: ￠
30mm ~ ￠ 200mm
Foresight
angle of view: 72°
~ 57°
Sidelong
glance angle of view: 51°
~ 40°
Electricity source: AC 220V 50Hz
|
|
|

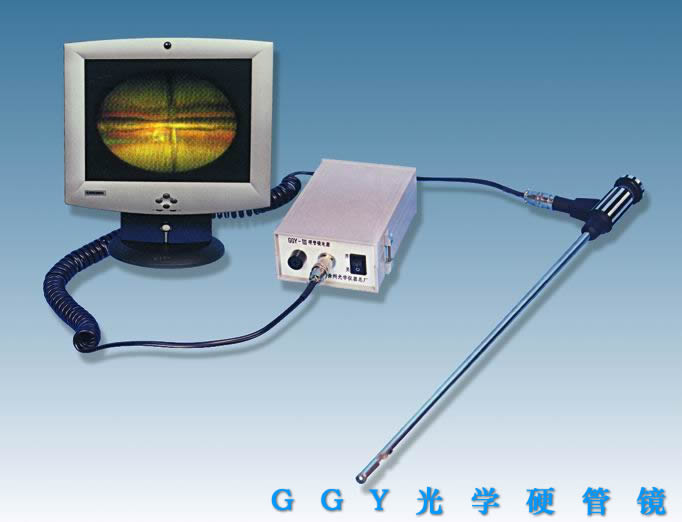

Optics
hard tube mirror
|
Optics hard tube mirroris
the using up study lens
transmission, the optical
fiber passes on the light the
ascending pipe endoscope, its
characteristic is the image
formation quality is high,
easy to operate, but widely
uses in profession and so on
rolling stock, automobile,
machinery, petrification not
damages the examination.
□ technical
parameter
Working
length: 200m
~ 750m
Work
outer diameter: ￠
2mm ~ ￠ 9mm
Angle
of view: 60°
Regards
the direction:
90° 70° 30°0°
Best
work distance: 7mm
~ 100mm
Jing Shen: 5mm
~ ∞
|
|
|
|
|
